Product Information

DH System is a specialized industrial automatic door maker that boasts the best quality and technology

Heat-Resistant Doors

Features

  • It is ideal for use infrozen/refrigerated automated warehouses where the utilization of side space is important.
  • It is a controller design for various conveyor I/O interfaces.
  • Counter balancing using weight enables manual opening and closing based on a weak force.
  • Some time after it is opened or closed manually, it returns to its original position.

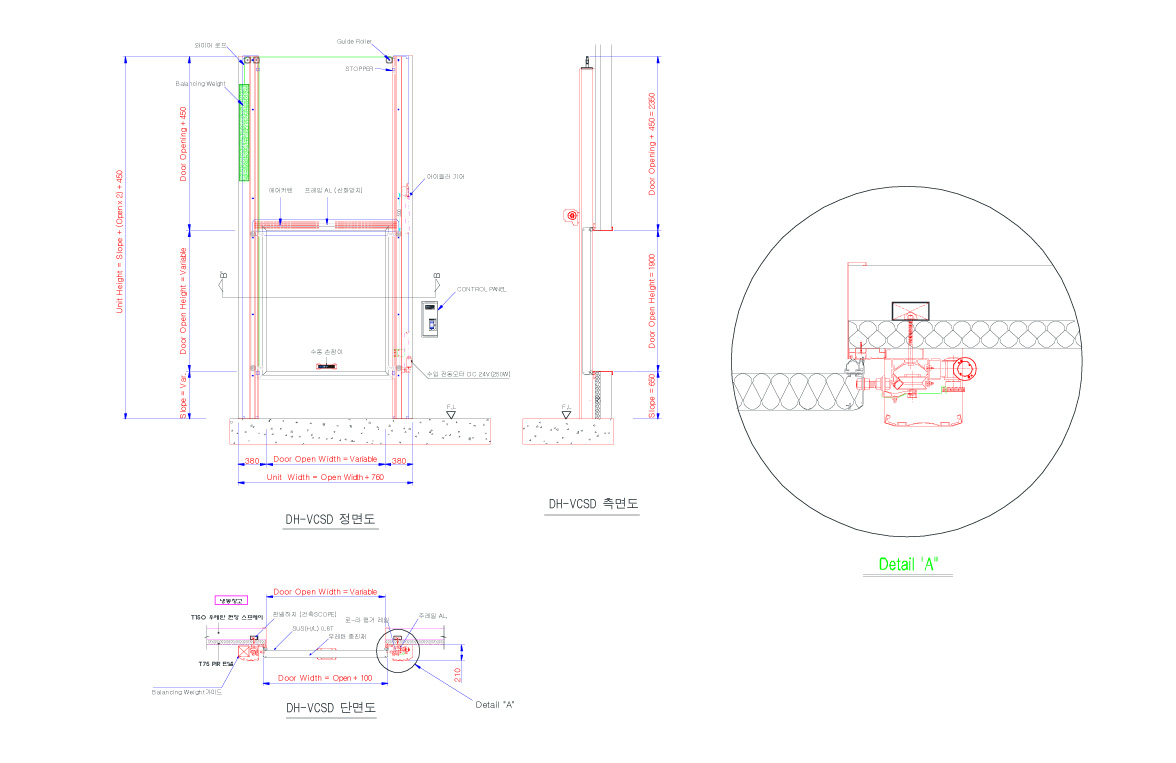

Door Drawing

NOTE

  • Opening/closingspeed : 250mm / sec±5% (Standard Type)
  • Power input : 220V single phase
  • Specifications of the door panel : Polyurethane filling inside / stainless steel (with hairline surface treatment) outside
  • Specifications of the motor : DC Geared Motor
  • Control mode : Micom type (installed outside of a frozen warehouse)
  • It can interlocked with the conveyor
  • Air Curtain : L1000 x W210 x H210
  • Sealing : Rubber seal is usedand heating cable is inserted
  • Power : (Motor 0.25kW + Heat Cable 1.75kW)=2.0kW±10% / Unit
