Product Information

DH System is a specialized industrial automatic door maker that boasts the best quality and technology

Speed Doors

Features

A newly conceived high-speed automatic door that is automatically restored upon dislocation. Thus it achieves zero damage caused by collision!
Zipper-style rail guide system
  • The high opening/closing speed ensures excellent dust-proof and insect-proof operation.
  • It provides excellent cooling/heating, temperature/humidity control and sound insulation atthe workplace
  • It is suitablefor multipurpose applications such as food, electronics, steel, logistical workshops, and product depots.
  • It is most suitable for industrial sites where vehicles/forklifts and people enter and exit frequently.
  • Even if a vehicle collides with the speed door, the dooris not damaged and is automatically restored ifit is dislocated.

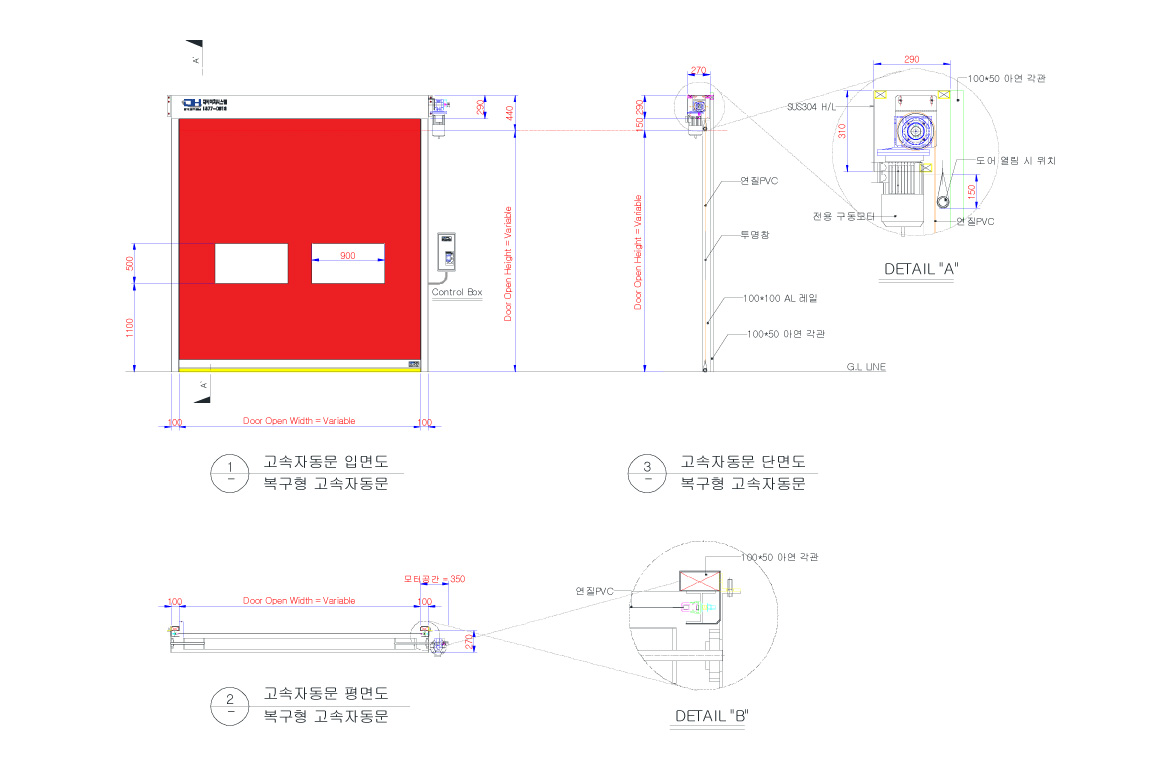

Door Drawing

Specifications

Specifications
Name of Product DH R - Series
Door Sizes W1000 ~ 4000 / H1000 ~ 4000
Power 220VAC /380VAC / 440VAC
Motor Geared Motor Brake Type (0.75kW)
Curtain Material Soft PVC 2.0T
Speed of Opening/Closing 1.5 ~ 2.0 m/sec (Variable)
Detection Sensor Metal detection sensor, remote control, switch, infrared (optional)
