Product Information

DH System is a specialized industrial automatic door maker that boasts the best quality and technology

Speed Doors

Features

Best customized for various purposes:
affordable price and maximum performance!
  • The high opening/closing speed ensures an excellent dust-proof and insect-proof operation.
  • It provides excellent cooling/heating, temperature/humidity control and sound nsulation at the workplace
  • It is suitablefor multipurpose applications such as food, electronics, steel, logisticsworkshops, and product depots.
  • It is ideal for industrial sites where vehicles/forklifts and people enter and exit frequently.
  • The most economical high-speed automatic door (lowest possible installation cost/ maintenance!)

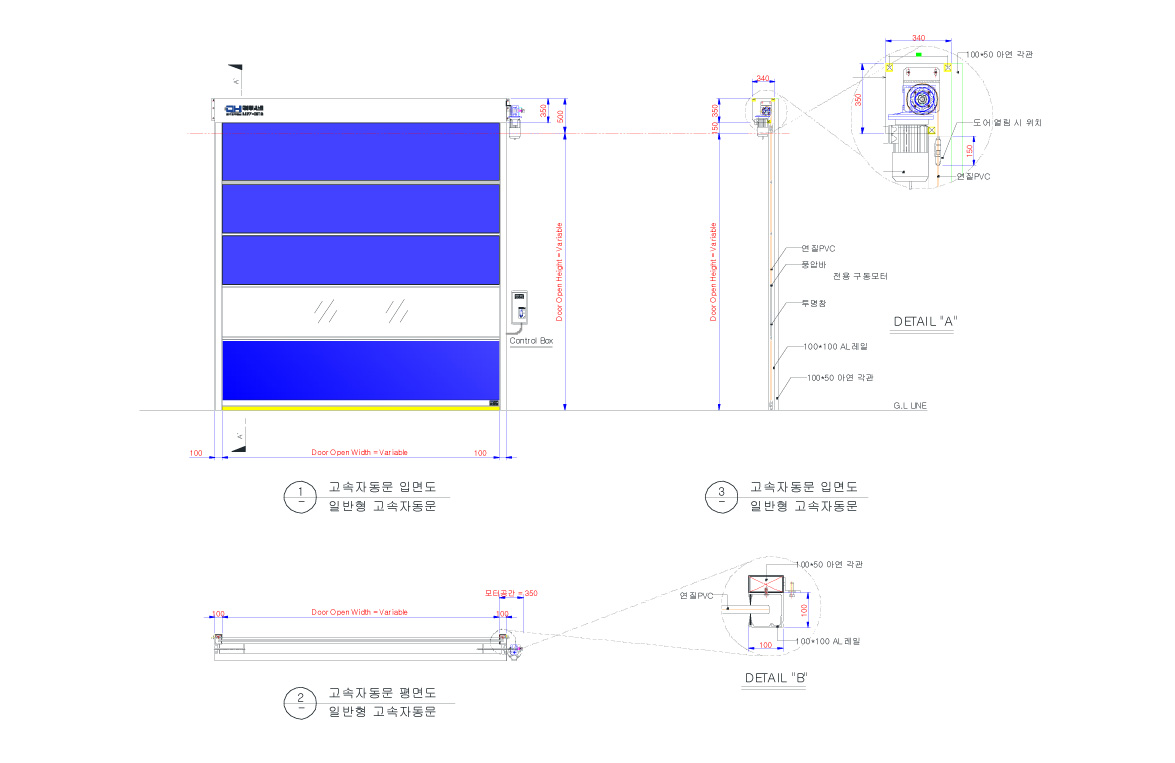

Door Drawing

Specifications

Specifications
Name of Product DH ES - Series / DH EM - Series
Door Sizes W1000 ~ 3000, H1000 ~ 3000 / W3000~6300, H3000 ~ 7000
Power 220VAC / 380VAC / 440VAC
Motor Geared Motor Brake Type (0.75~2.3kW)
Curtain Material SoftPVC 0.9T
Speed of Opening/Closing 0.5 ~ 1.5 m/sec (Variable)
Detection Sensor Metal detection sensor, remote control, switch, infrared (optional)
